Router Cisco 7604

2,655.00$

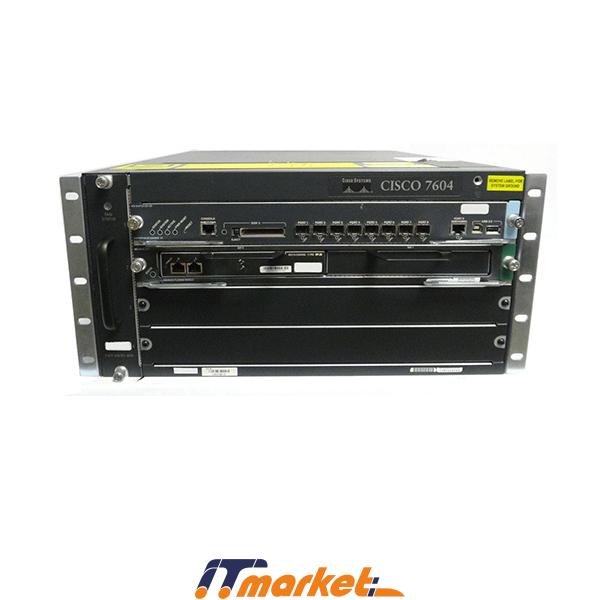

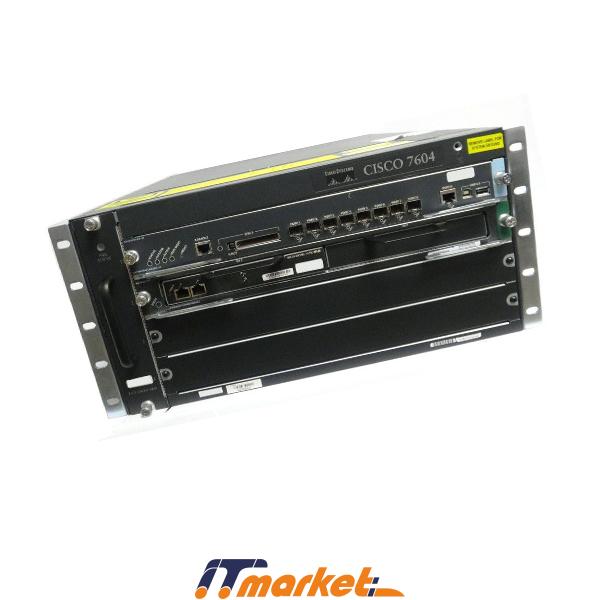

The Cisco® 7604 Router CISCO7604 is a compact, high-performance router designed in a 4-slot form factor for deployment at the network edge.

Kateqoriya: , Etiket: Brand: Cisco
Share this product!

Açıqlama



CISCO7604 Overview

The Cisco® 7604 Router CISCO7604 is a compact, high-performance router designed in a 4-slot form factor for deployment at the network edge, where robust performance and IP/Multiprotocol Label Switching (MPLS)     services are necessary to meet the requirements of both enterprises and service providers. It enables Carrier Ethernet service providers to deploy an advanced network infrastructure that supports a range of IP video and  triple-play (voice, video, and data) system applications in both the residential and business services markets. The Cisco 7604 also delivers WAN and metropolitan-area network (MAN) networking solutions at the enterprise edge.

Quick Spec



Table 1 shows the quick spec.

Product NumberCISCO7604
DescriptionCisco 7604 Chassis
Chassis5RU (8.75-in.) chassis
Chassis Slots4-slot chassis
Dimensions (H x W x D)8.75 x 17.5 x 21.75 in
weight40 lb

Compare to Similar Items

Table 2 shows the comparison between CISCO7604 and CISCO7609=.

Product NumberCISCO7604CISCO7609=
DescriptionCisco 7604 ChassisCisco 7609 Chassis Spare
Dimensions (H x W x D)8.75 x 17.5 x 21.75 in36.75 x 17.2 x 20.7 in
Weight40 lb121 lb



CISCO7604 Specification

CISCO7604 Specification

Product NumberCISCO7604
DescriptionCisco 7604 Chassis
Chassis5RU (8.75-in.) chassis
Chassis Slots4-slot chassis
Dimensions (H x W x D)8.75 x 17.5 x 21.75 in
weight40 lb
Power requirements110 to 240 VAC, –48 to –60 VDC
Environmental conditionsOperating temperature: 32 to 104°F (0 to 40°C)

Storage temperature: –4 to 149°F (–20 to 65°C)

Relative humidity, operating: 10 to 85% noncondensing

Relative humidity, storage: 5 to 95% noncondensing

Operating altitude: –500 to 6500 ft

Regulatory complianceEMC

●  FCC Part 15 (CFR 47) Class A

●  ICES-003 Class A

●  EN55022 Class A

●  CISPR22 Class A

●  AS/NZS 3548 Class A

●  VCCI Class A

●  EN55024

●  ETS300 386

●  EN50082-1

●  EN61000-3-2

●  EN61000-3-3

Regulatory Compliance

●  UL 60950

●  IEC 60825-1, -2

●  IEC 60950

●  EN 60950, EN 60825-1, -2

●  CAN/CSA-C22.2 No. 60950-00

●  AS/NZS 3260-1993

●  21CFR1040

Safety and environmental standards compliance●  GR-63-Core NEBS Level 3 (post-FCS)

●  GR-1089-Core NEBS Level 3 (post-FCS)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

Minimum software releaseCisco IOS® Software Release 12.2.18SXE
