WS-C2960+24LC-S Overview
Cisco Catalyst 2960-Plus Series 24 ports LAN Lite switch supports 16 x 10/100 Ethernet ports, 8 x 10/100 PoE (IEEE 802.3af-compliant) ports and 2 x combo Gigabit SFP ports.
Quick Specs

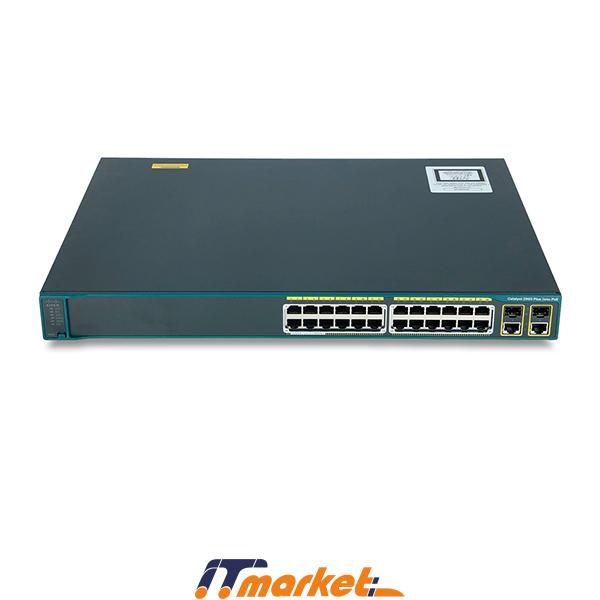

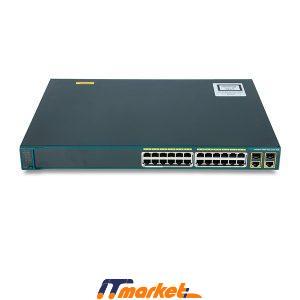

Figure 1 shows the appearance of the WS-C2960+24LC-S.
Table 1 shows the Quick Specs.
Product Code | WS-C2960+24LC-S |
Enclosure Type | Rack-mountable 1U |
Feature Set | LAN Lite |
Uplink Interfaces | 2 (SFP or 1000BASE-T) |
Available PoE Power | 123W |
Maximum Number of PoE (IEEE 802.3af) Ports | 8 ports up to 15.4W |
Ethernet Ports | 24 x 10/100 Ethernet ports |
Forwarding Bandwidth | 16 Gbps |
RAM | 128 MB |
Flash Memory | 64 MB |
Dimensions | 4.4cm x 45.0cm x 33.2cm |
Package Weight | 9.19 Kg |
