Description
Cisco WS-C2960C-12PC-L Overview

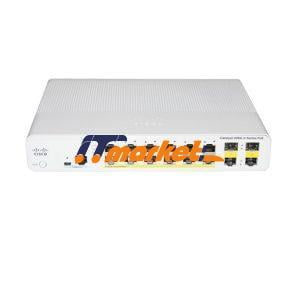

Cisco Catalyst 2960 Compact 12 ports LAN Base switch supports 12 x 10/100 Fast Ethernet ports with POE which offers 124W available POE power. Cisco 2960 Compact switches are ideal for connecting multiple devices on the retail sales floor and in classrooms, hotels, and factories and for extending wireless LAN networks: wherever space is at a premium and multiple cable runs could be challenging.
Quick Specs
Table 1 shows the Quick Specs.
Product Code | WS-C2960C-12PC-L |
Feature Set | LAN Base |
Uplink Interfaces | 2 x 1G copper or 2 x 1G SFP |
Ports | 12 x 10/100 Fast Ethernet |
Available POE Power | 124W |
Forwarding Bandwidth | 10 Gbps |
RAM | 128 MB |
Flash Memory | 64 MB |
Dimensions | 4.6 x 26.9 x 23.9 cm |
Package Weight | 4.38 Kg |
The Accessories
Table 2 shows some recommended cables and SFP modules.
Models | Descriptions |
CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B |
CAB-CONSOLE-RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F |
GLC-SX-MM | GLC-SX-MM GE SFP, LC connector SX transceiver |
GLC-LH-SM | 1000BASE-LX/LH SFP for Both Multimode and Single-Mode Fibers |
GLC-BX-D | 1000BASE-BX SFP, 1490NM |
GLC-BX-U | 1000BASE-BX SFP, 1310NM |
GLC-FE-100FX | 100BASE-FX SFP for FE port |
GLC-FE-100LX | 100BASE-LX SFP for FE port |
GLC-FE-100BX-D | 100BASE-BX10-D SFP |
GLC-FE-100BX-U | 100BASE-BX10-U SFP |
Compare to similar item
Table 3 shows the comparison between WS-C2960C-12PC-L and WS-C2960C-8PC-L.
Models | WS-C2960C-12PC-L | WS-C2960C-8PC-L |
Uplinks | 2 x 1G copper or 2 x 1G SFP | 2 x 1G copper or 2 x 1G SFP |
Ports | 12 x 10/100 Fast Ethernet POE Ports | 8 x 10/100 Fast Ethernet POE Ports |
Available POE Power | 124W | 124W |
Feature set | LAN Base | LAN Base |
