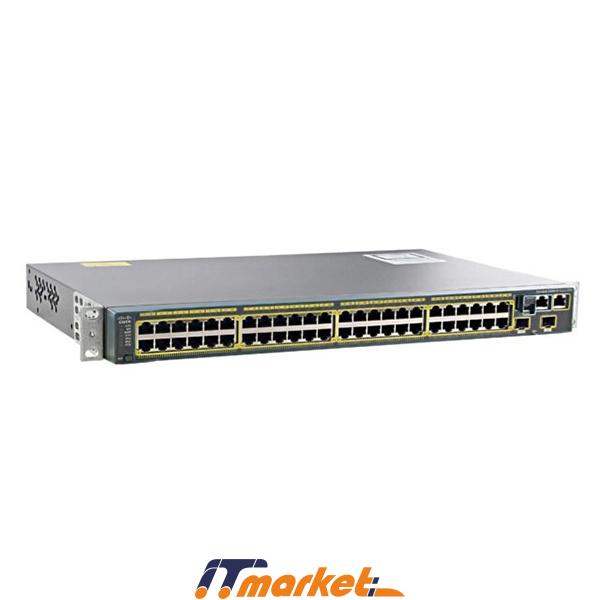

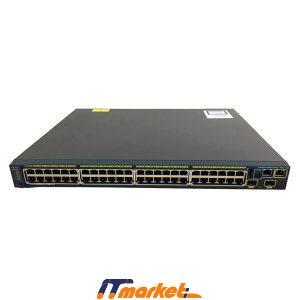

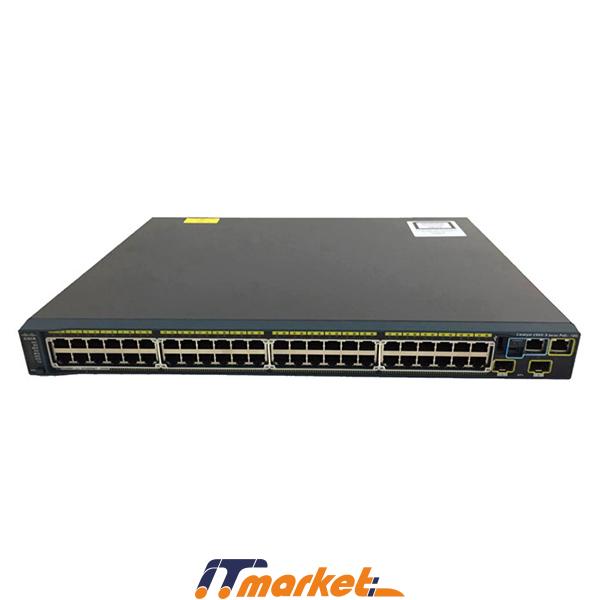

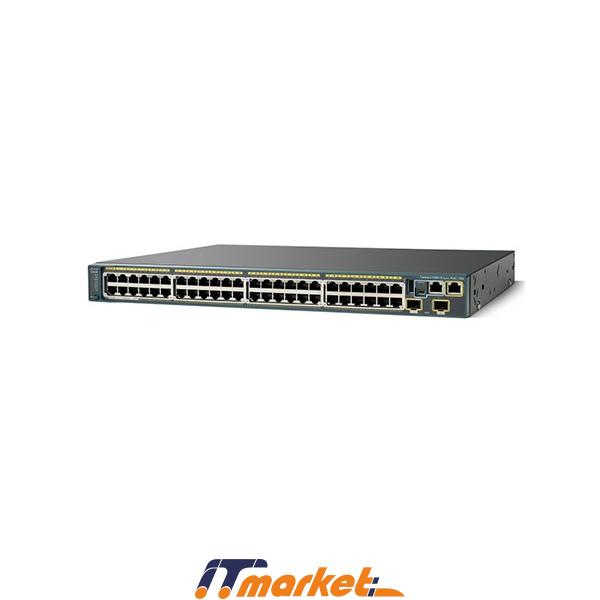

Cisco WS-C2960S-48LPD-L 10G 2x10G SFP-LAN Base
Product by:
Our Price
1,200.00 ₼
Cisco Catalyst 2960S-48LPD Layer 2 – Gigabit Ethernet Switch – 48 x 10/100/1000 PoE Ports – 370W – 2 x 10G SFP – LAN Base
1 ədəd anbarda var
Ready to Ship
Açıqlama
WS-C2960S-48LPD-L (USED) Overview
WS-C2960S-48LPD-L, one of Cisco Catalyst 2960-S Series Switches with LAN Base software, is designed for enterprise, midmarket, and branch office networks. This model includes 10 and 1 Gigabit Ethernet uplink flexibility with 2 SFP+, providing business continuity and fast transition to 10 Gigabit Ethernet, 48 ports of Gigabit Ethernet desktop connectivity, and 370W fixed power supplies available. The Cisco Catalyst switch 2960S-48LPD-L, as a leading Layer 2 edge, provides improved ease of use, highly secure business operations, improved sustainability, and a borderless network experience.
-
WS-C2960S-48LPD-L
Cisco Catalyst 2960-S Series Switch
- 48 Ethernet 10/100/1000 PoE+ ports
- 370W PoE capacity
- 2 10 Gigabit Ethernet or 2 1 Gigabit Ethernet SFP+ uplink ports
- Optional Cisco FlexStack stacking support
- LAN Base image
-
WS-C2960S-48LPD-L (USED) Specification
WS-C2960S-48LPD-L Specifications General Information Device Type Switch – 48 ports – Managed Enclosure Type Rack-mountable – 1U Ports 48 x 10/100/1000 + 2 x 10 Gigabit SFP+ Power Over Ethernet (PoE) 370 Watts Performance Switching capacity : 176 Gbps
Forwarding performance (64-byte packet size) : 101.2 MppsMAC Address Table Size 8K entries Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH Encryption Algorithm SSL Authentication Method Secure Shell (SSH), RADIUS, TACACS+ Features Layer 2 switching, auto-sensing per device, dynamic IP address assignment , power over Ethernet (PoE), auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), PoE+, Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at RAM 128 MB Flash Memory 64 MB Flash Status Indicators Port status, link activity, port transmission speed, port duplex mode, power, system Expansion / Connectivity Interfaces 48 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE
USB : 1 x 4 pin USB Type A
1 x console – mini-USB Type B – management
1 x console – RJ-45 – management
1 x 10Base-T/100Base-TX – RJ-45 – management
2 x SFP+Expansion Slot(s) 1 (total) / 1 (free) x Stacking Module Power Power Device Power supply – internal Voltage Required AC 120/230 V ( 50/60 Hz ) Power Consumption Operational 71 Watt Miscellaneous Width 17.5 in. (44.5 cm) Depth 15.2 in. (38.6 cm) Height 1.8 in. (4.5 cm) Weight 13 lbs (5.77 kg) Rack Mounting Kit Optional MTBF 198,300 hour(s) Compliant Standards TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A Software / System Requirements Software Included Cisco IOS LAN Base Service & Support Limited lifetime warranty Service & Support Details Limited warranty – replacement – lifetime – response time: next business day
Limited warranty – power supply and fans – 5 years
New releases updateEnvironmental Parameters Min Operating Temperature 23 °F (-5 °C) Max Operating Temperature 104 °F (40 °C) Humidity Range Operating 10 – 95% (non-condensing) Min Storage Temperature -13 °F (-25 °C) Max Storage Temperature 158 °F (70 °C) Humidity Range Storage 10 – 95% (non-condensing)
Tags: cisco, kommutator
