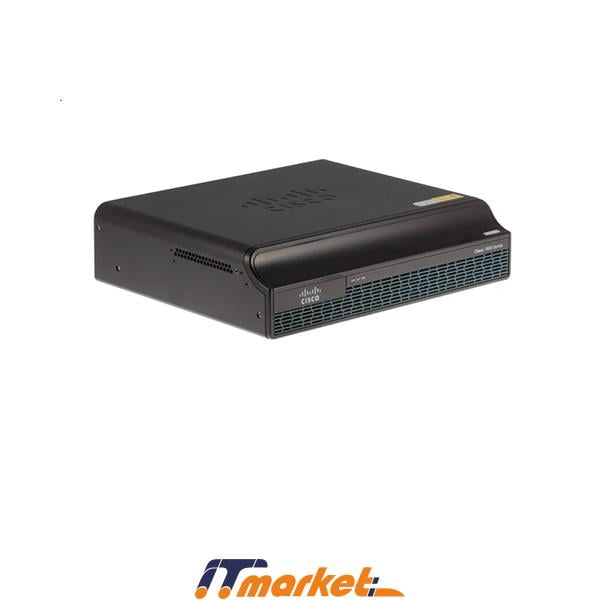

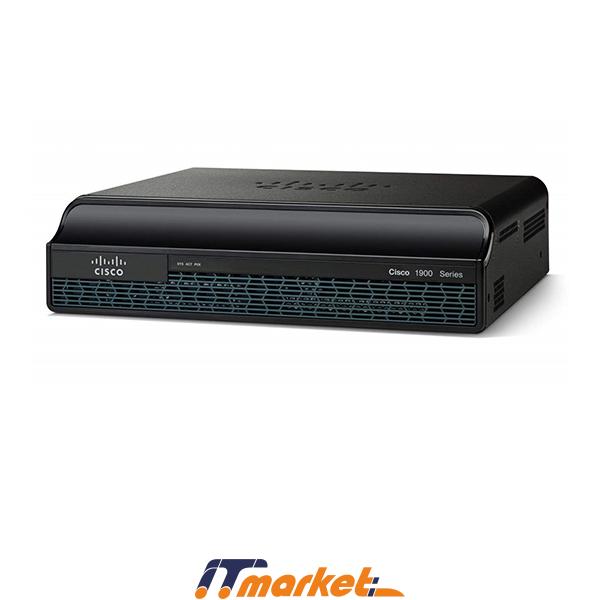

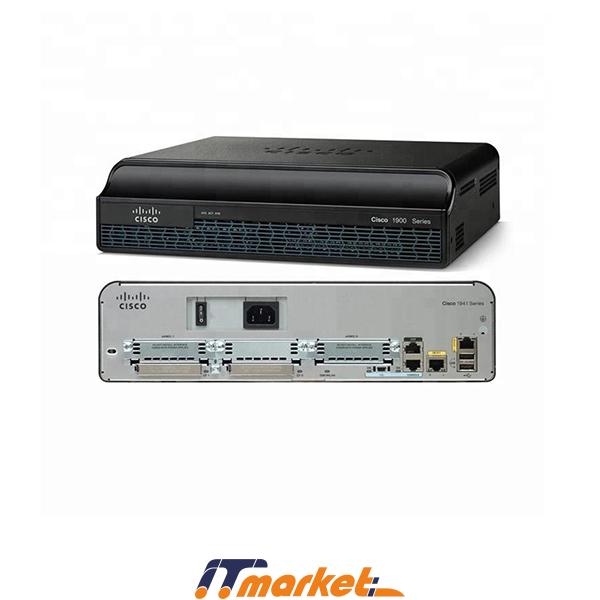

Router Cisco1941-k9 Specification
Router Cisco1941-k9 2-Port Gigabit Wireless N Router (CISCO1941-SEC/K9)These Cisco integrated routers feature two enhanced WIC slots and 512 MB of DRAM memory. This router has 256 MB of compact flash memory and an IP base license. It is already set up for IOS version 15.0(1r)M16. This allows you to enjoy random early detection of outside access to your network. The Cisco iOS also delivers a firewall with automatic software upgrades. If you have minors in your home, the content filtering delivered by this type of Cisco routing system enhances safety. You can set up the Cisco router to block certain websites, images, and other types of unwanted content.This system features a fast Ethernet switch for connecting computers, networked printers, and IP phones. You can also use it for setting up VPN networks. It supports gigabit Ethernet, which allows you to upload large files to the cloud or to your backup hard drives with ease. It also allows you to download large data sets as it automatically checks for authenticity of the document. This allows you to maintain control over who within your networking system can access certain types of data. This Cisco series routing device also allows you to set up guest access, such as if you have an e-commerce site. It includes quality of service support for voice, video, and data traffic. With this unified communications system, small business employees and people who work from home can stay productive. This series allows for off-site access by authorized users.The Cisco 1941 two-port Gigabit Wireless N router (CISCO1941-SEC/K9) series offers network agility. There is a two-port WAN interface card, which enhances your ability to secure and connect devices. With these integrated routers, you get the security necessary for both home and commercial networks. The encryption algorithm for this router is the SSL type. If you need to protect sensitive data stored on your networks, this series allows you to set up multiple authentication processes.Zip around the internet and connect to other systems on the network with this router that ensures compatibility. It includes weighted fair queuing to ensure that all demands for bandwidth are met as quickly and fairly as possible. These Cisco integrated routers also deliver a fast and easy setup. It has an intuitive browser-based device manager that works in all major browsers on Mac and Windows based operating systems. You can use the built-in setup wizards for easy configuration. This is important when you need to quickly get a router going for everything from work to doing research or homework. The modules come with two USB ports for connecting hardware.This Cisco router measures 13.5 inches long by 11.5 inches wide by 3.5 inches deep. It weighs 12 pounds. You can use hardware to mount this series of router to a wall. It also sits flat and can rest on a shelf or server rack. The back of the Cisco1941/k9 series features vents to help dissipate heat. It is constructed of a solid metal housing with a flat off-white finish. | |
Main Specs | |
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | CISCO1941/K9 |
Product Type | Router |
Form Factor | External – modular – 2U |
Dimensions (WxDxH) | 34.3 cm x 29.2 cm x 8.9 cm |
Weight | 5.8 kg |
DRAM Memory | 512 MB (installed) / 2 GB (max) |
Flash Memory | 256 MB (installed) / 8 GB (max) |
Routing Protocol | OSPF, IS-IS, BGP, EIGRP, DVMRP, PIM-SM, IGMPv3, GRE, PIM-SSM, static IPv4 routing, static IPv6 routing |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | IPSec |
Remote Management Protocol | SNMP, RMON |
Features | Cisco IOS IP Base , firewall protection, VPN support, MPLS support, Syslog support, IPv6 support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED) |
Compliant Standards | IEEE 802.3ah, IEEE 802.1ah, IEEE 802.1ag |
Power | AC 120/230 V ( 50/60 Hz |
Services and Slot Density | |
Embedded hardware-based crypto acceleration (IPSec + SSL) | Yes |
Total Onboard LAN 10/100/1000 | 2 |
RJ-45-Based Ports | 2 |
SFP-Based Ports | 0 |
SM Slots | 0 |
Double-Wide SM Slots | 0 |
EHWIC Slots | 2 |
Double-Wide EHWIC slots (use of a double-wide EHWIC slot will consume two EHWIC slots) | 1 |
ISM Slots | 1 (0 on the Cisco 1941W) |
Memory (DDR2 Error Correction Code [ECC] ECC DRAM) – Default | 512 MB |
Memory (DDR2 ECC DRAM) – Maximum | 2.0 GB |
Compact Flash (external) – Default | slot 0: 256 MB slot 1: none |
Compact Flash (external) – Maximum | slot 0: 4 GB slot 1: 4 GB |
External USB flash memory slots (Type A) | 2 |
USB Console Port (Type B) (up to 115.2 kbps) | 1 |
Serial Console Port (up to 115.2 kbps) | 1 |
Serial Auxiliary Port (up to 115.2 kbps | 1 |
Power Supply Options | AC, POE |
Redundant Power Supply Support | No |
Power Specifications | |
AC Input Voltage | 100-240 V ~ |
AC Input Frequency | 47-63 Hz |
AC Input Current range AC Power Supply (Max) (Amps) | 1.5-0.6 |
AC Input Surge Current | <50 A |
Typical Power (No Modules) | 35 W |
Maximum Power capacity with AC power supply | 110 W |
Maximum Power capacity with PoE power supply (platform only) | 110 W |
Maximum PoE device power capacity with PoE power supply | 80 W |
Physical Specifications | |
Dimensions (H x W x D) | 3.5 in x 13.5 in x 11.5 in (34.3 cm x 29.2 cm x 8.9 cm) |
Rack Height | 2 RU |
Rack-mount 19in. (48.3 cm) EIA | Included |
Wall-mount (refer to installation guide for approved orientation) | Yes |
Package Weight | 23.1 lbs (10.48 Kg) |
Weight-with AC power supply (no modules) | 12 lbs(5.44 Kg) |
Weight-with POE power supply (no modules) | 12.8 lbs (5.8 Kg) |
Maximum Weight-Fully Configured | 14 lbs (6.35 Kg) |
Airflow | Front to Side |
Environmental Specifications | |
Operating Condition | |
Temperature-5906 feet (1800 m) max. altitude | 0-40°C (32-104°F) |
Temperature-9843 feet (3000 m) max. altitude | 0-25°C (32-77°F) |
Altitude | 3000 m (10000 ft) |
Humidity | 10 to 85% RH |
Acoustic: Sound Pressure (Typ/Max) | 26/46 dBA |
Acoustic: Sound Power (Typ/Max) | 36/55 dBA |
Transportation/Storage Condition | |
Temperature | -40 – 70 oC (-40 – 158 oF) |
Humidity | 5 to 95%RH |
Altitude | 4570m (15000 ft) |
Regulatory Compliance | |
Safety | UL 60950-1 CAN/CSA C22.2 No. 60950-1 EN 60950-1 AS/NZS 60950-1 IEC 60950-1 |
EMC | 47 CFR, Part 15 ICES-003 Class A EN55022 Class A CISPR22 Class A AS/NZS 3548 Class A VCCI V-3 CNS 13438 EN 300-386 EN 61000 (Immunity) EN 55024, CISPR 24 EN50082-1 |
Telecom | TIA/EIA/IS-968 CS-03 ANSI T1.101 ITU-T G.823, G.824 IEEE 802.3 RTTE Directive |
