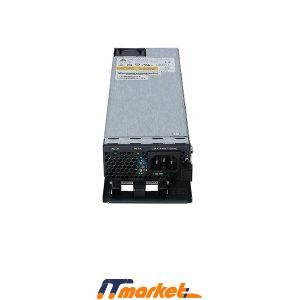

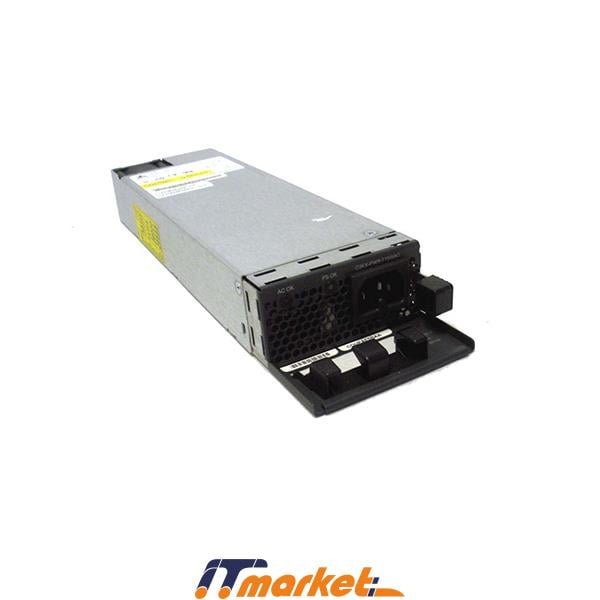

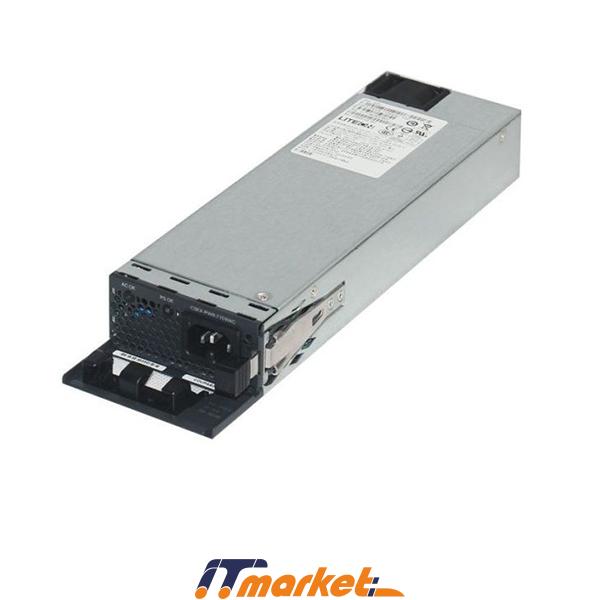

Qida bloku (Cisco 3750X-3560X) 350Watt
Product by:
Our Price
150.00 ₼
Qida bloku (Cisco 3750X-3560X) 350Watt
6 in stock
Ready to Ship
Description
Product Information
Cisco announces the end-of-sale and end-of-life dates for the Cisco Catalyst 3560-X and 3750-X Power Supplies, Cables, and Other Accessories. Cisco Catalyst 3560-X Series Power Supply – C3KX-PWR-350WAC Catalyst 3K-X 350W AC Power Supply for Cisco 3560X.
Table 1 Quick Spec.
| Power Specifications | |
| Maximum output power | C3KX-PWR-1100WAC, PWR-C1-1100WAC: 1100 W |
| C3KX-PWR-715WAC, PWR-C1-715WAC: 715 W | |
| C3KX-PWR-350WAC, PWR-C1-350WAC: 350 W | |
| Input voltage range and frequency | C3KX-PWR-1100WAC, PWR-C1-1100WAC: 1100-W, 115 to 240 VAC (autoranging) 50 to 60 Hz |
| C3KX-PWR-715WAC, PWR-C1-715WAC: 715 W, 100 to 240 VAC (autoranging), 50 to 60 Hz | |
| C3KX-PWR-350WAC, PWR-C1-350WAC: 350 W, 100 to 240 VAC (autoranging), 50 to 60 Hz | |
| Input current | C3KX-PWR-1100WAC, PWR-C1-1100WAC:12-6 A |
| C3KX-PWR-715WAC, PWR-C1-715WAC: 10-5 A | |
| C3KX-PWR-350WAC, PWR-C1-350WAC: 4-2 A | |
| Output ratings | C3KX-PWR-1100WAC, PWR-C1-1100WAC: -56 V@19.64 A |
| C3KX-PWR-715WAC, PWR-C1-715WAC: -56 V@12.8 A | |
| C3KX-PWR-350WAC, PWR-C1-350WAC: -56 V@6.25 A | |
| Total input BTU1 | C3KX-PWR-1100WAC, PWR-C1-1100WAC: 4263 Btus per hour, 1250 W |
| C3KX-PWR-715WAC, PWR-C1-715WAC: 2742 Btus per hour, 804 W | |
| C3KX-PWR-350WAC, PWR-C1-350WAC: 1357 Btus per hour, 398 W | |
| Total output BTU1 | C3KX-PWR-1100WAC, PWR-C1-1100WAC: 3751 Btus per hour, 1100C3KX-PWR-440WDC, PWR-C1-440WDCW |
| C3KX-PWR-715WAC, PWR-C1-715WAC: 2438 Btus per hour, 765 W | |
| C3KX-PWR-350WAC, PWR-C1-350WAC: 1194 Btus per hour, 350 W | |
Table 2 Environmental Ranges of C3KX-PWR-715WAC.
| Operating1 temperature | 23 to 113° F (-5 to 45° C) |
| Operating1 temperature with FIPS kit installed | 23 to 104° F (-5 to 40° C) |
| Storage temperature | -13 to 158° F (-25 to 70° C) |
| Relative humidity | 10 to 85% (noncondensing) |
| Operating altitude | Up to 10,000 ft (3049 m) |
| Storage altitude | Up to 15,000 ft (4573 m), NEBS up to 13,000 ft (4000 m) |
