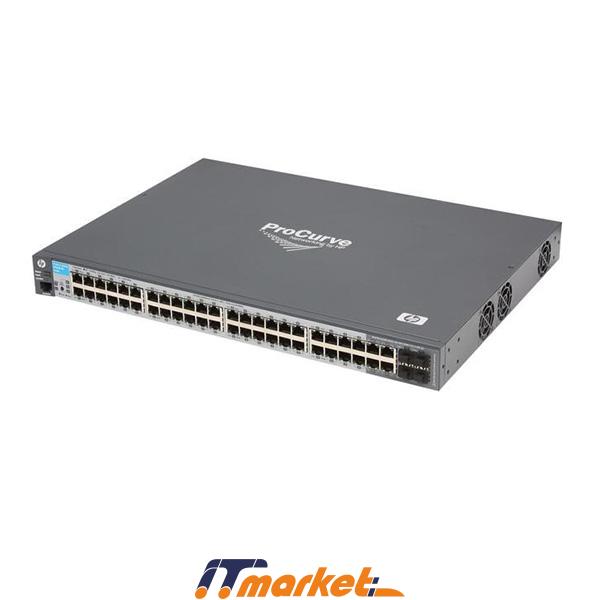

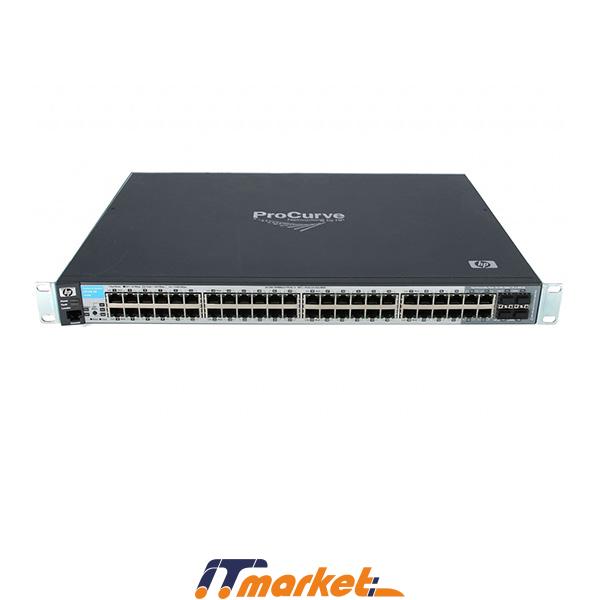

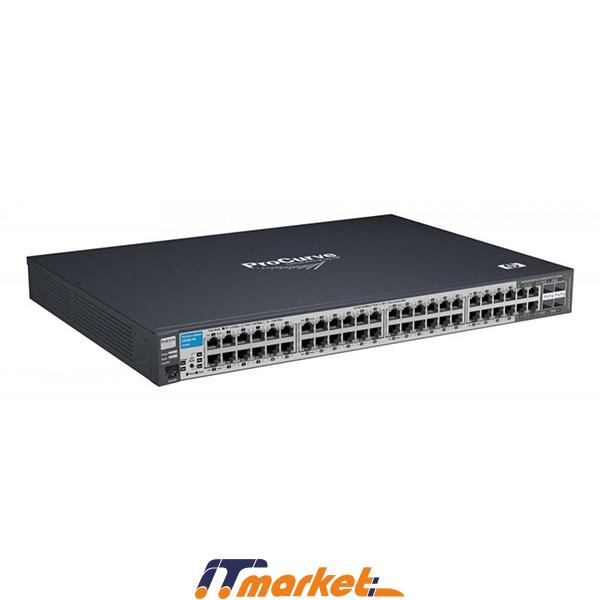

HP ProCurve 2510G-48 Stackable Ethernet Switch J9280A
750.00 ₼
HP ProCurve 2510G-48 Stackable Ethernet Switch J9280A
1 in stock
Description
HP 2510-48G Switch
Designed to provide essential solutions to small and medium businesses, the HP 2510 Switch Series consists of four Layer 2-managed switches that provide reliable 10/100 and 10/100/1000 connectivity. Building off of the popularity of the HP 2510-24 Switch, a 24-port 10/100 switch with two dual-personality ports, the 2510 switch series has expanded to include a higher-density HP 2510-48 Switch, with 48 10/100 ports and four Gigabit Ethernet uplinks. Additionally, the 2510-G switches add Gigabit Ethernet to the 2510 series, with the 2510G-24 and 2510G-48 switches, which are 24- and 48-port 10/100/1000 switches, each with four dual-personality ports, making them ideal for businesses that are ready to upgrade to increased network performance.
| Brand | HP |
|---|---|
| Co2 Savings | 343.78 |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Colour of product | Black |
| Safety | cUL (CSA 22.2 No. 60950); EN 60950/IEC 60950; NOM-019-SCFI-1994; UL 60950 |
| Electromagnetic compatibility | FCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; IEC/EN 61000-3-2; IEC/EN 61000-3-3 |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Networking standards | IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Auto MDI/MDI-X | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| MAC address table | 8000 entries |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 96 Gbit/s |
| Throughput | 71.4 Mpps |
| Maximum data transfer rate | 1 Gbit/s |
| Jumbo frames support | Yes |
| Packet buffer memory | 1.5 MB |
| SSH/SSL support | Yes |
| Management protocols | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, CLI |
| Supported network protocols | General Protocols: IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; IP Multicast: RFC 1213 MIB II; MIBs: RFC 1213 MIB II; RFC 1493 Bridge MIB; RF |
| Built-in processor | Yes |
| Processor model | MIPS |
| Processor frequency | 264 MHz |
| Memory type | SDRAM |
| Internal memory | 64 MB |
| Flash memory | 16 MB |
| Noise level | 40.5 dB |
| AC input voltage | 100 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Input current | 1.5 A |
| Input voltage | 100-127 / 200-240 VAC |
| Output power | 92 W |
| Power consumption (typical) | 92 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating relative humidity (H-H) | 15 – 95% |
| Storage relative humidity (H-H) | 15 – 95% |
| Heat dissipation | 341 BTU/h |
| Width | 442 mm |
| Depth | 322.6 mm |
| Height | 43.2 mm |
| Weight | 3.9 kg |
| Management platform | ProCurve Manager Plus; ProCurve Manager; command-line interface; Web browser; out-of-band management (serial RS-232C) |
| Latency | < 5.4 µs (FIFO 64-byte packets) |
| Dimensions (WxDxH) | 442 x 322.6 x 43.2 mm |
| Connectivity technology | Wired |
| Power requirements | 100-127 VAC/200-240 VAC; 50/60 Hz |
| Input frequency | 50 / 60 Hz |
| Size | 32.3 cm (12.7″) |
| Memory and processor | MIPS @ 264 MHz, 16 MB flash, 64 MB SDRAM; packet buffer size: 1.5 MB |
| Operating altitude (imperial) | up to 10000 ft. |
| Electromagnetic immunity | EN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3 |
| I/O ports | 44 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T); Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only; Media type: Auto-MDIX; 1 RJ-45 serial console port; 4 dual-personali |
| Weight (imperial) | 8.6 lb. |
