Description

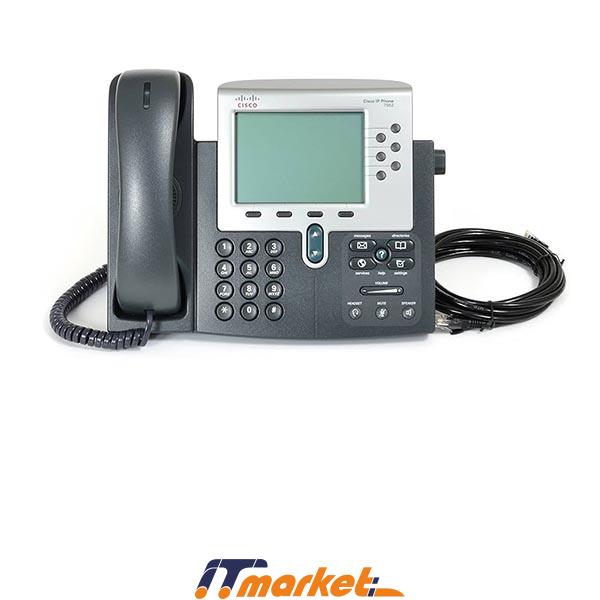

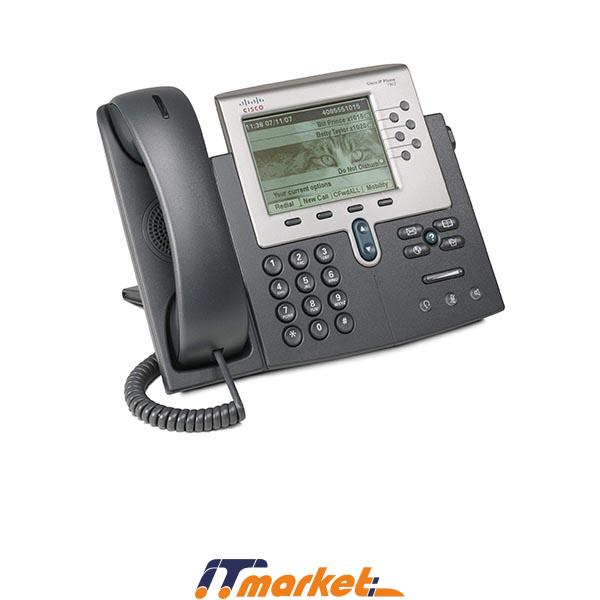

CP-7962G Specification
model info | CP-7962G |
product Type | IP phone |
Codec Support | G.711a, G.711µ, G.729a, G.729ab, G.722, and iLBC audio compression codecs are supported |
Speakerphone | Full-duplex speakerphone with acoustic echo cancellation. |
Messages Key | Provide direct access to voicemail |
Directories Key | Corporate directory integrates with the Lightweight Directory Access Protocol Version 3 (LDAP3) standard directory. |
Settings Key | preferences also can be set up (usually by the system administrator). Configuration can be set up either automatically or manually for Dynamic Host Control Protocol (DHCP), Trivial File Transfer Protocol (TFTP), Cisco Unified Communications Manager, and backup Cisco Unified Communications Manager instances. Other available Settings submenus include Device Configuration, Security Configuration, and Model Information. |
Help Button | Online Help gives users information about the phone keys, buttons and features |
Expansion Module Support | An optional add-on module, the Cisco Unified IP Phone Expansion Module 7914, provides 14 additional buttons for programming directory numbers or speed dials. Up to two expansion modules can be used. |
Mutiple Ring Tones | More than 24 defined user-selectable ring tones are available. Ring tones may also be personalized through use of the Cisco Unified Phone Application Suite. |
Language Support | morethan 30 languages. |
Dimensions (H x W x D) | 8.2 x 10.5 x 6 in. (20.32 x 26.67 x 15.24 cm) |
Weight | 3.5 lb (1.6 KG) |
Phone Software Requirements | Supported in 8.3(2) and greater |
Call Control compatibility | Supported in Cisco Unified Communications Manager Versions 4.1(3)sr5b, 4.2(3)sr2b, 4.3(1), 5.1.1(b), 5.1(2), 6.0(1) and greater Supported in Cisco Unified Communications Express and SRST Version 4.1 |
Signaling protocols | Skinny Client Control Protocol (SCCP) and Session Initiation Protocol (SIP) with Cisco call control |
license | SW-CCME-UL-7962: Communications Manager Express License For One 7962G Phone |
Tags: cisco, ip telefon, VoIP
